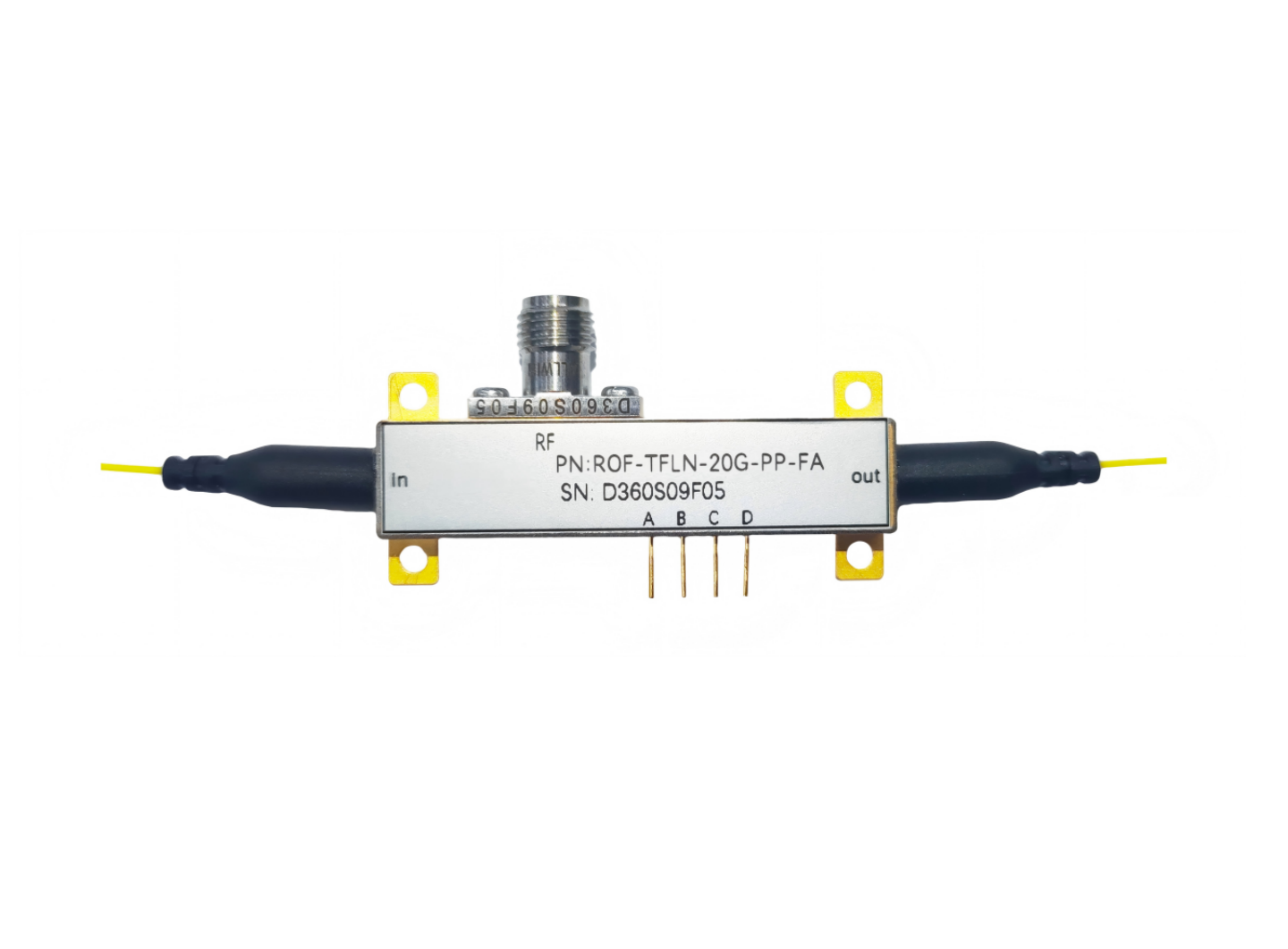

Modulator ea Rof Intensity e tšesaane ea filimi ea lithium niobate modulator ea 20G TFLN
Tšobotsi
■ Bophara ba RF ho fihlela ho 20/40 GHz
■ Motlakase o tlase oa halofo ea maqhubu
■ Tahlehelo ea ho kenya e tlase ho 4.5dB
■ Boholo ba sesebelisoa bo bonyenyane
Paramethara ea sehlopha sa C
| Sehlopha | Khang | Sym | Yuniti | Aointer | |
| Tshebetso ea mahlo (@25°C) | Bolelele ba bolelele ba maqhubu a sebetsang (*) | λ | nm | X2：C | |
| ~1550 | |||||
| Karolelano ea ho fela ha optical (@DC) (**) | ER | dB | ≥ 20 | ||
| Tahlehelo ea ho khutla ha Optical
| ORL | dB | ≤ -27 | ||
| Tahlehelo ea ho kenya mahlo (*) | IL | dB | PHAHAMA: 5.5Mofuta: 4.5 | ||
| Matlo a motlakase (@25°C)
| Bophara ba motlakase ba 3 dB (ho tloha ho 2 GHz) | S21 | GHz | X1: 2 | X1: 4 |
| MIN: 18Mofuta: 20 | MIN: 36Mofuta: 40 | ||||
| Motlakase oa halofo ea maqhubu a Rf (@50 kHz)
| Vπ | V | X3：5 | X3：6 | |
| PHAHAMA: 3.0Mofuta: 2.5 | PHAHAMA: 3.5Mofuta: 3.0 | ||||
| Matla a maqhubu a halofo a feto-fetohang a mocheso | Papπ | mW | ≤ 50 | ||
| Tahlehelo ea ho khutla ha Rf (2 GHz ho isa ho 40 GHz)
| S11 | dB | ≤ -10 | ||
| Boemo ba ho sebetsa
| Mocheso o sebetsang | TO | °C | -20~70 | |
* e ka fetoloang** Tekanyo e phahameng ea ho fela ha lintho (> 25 dB) e ka fetoloa.
Paramethara O-band
| Sehlopha | Khang | Sym | Yuniti | Aointer | |
| Tshebetso ea mahlo (@25°C) | Bolelele ba bolelele ba maqhubu a sebetsang (*) | λ | nm | X2：O | |
| ~1310 | |||||
| Karolelano ea ho fela ha optical (@DC) (**) | ER | dB | ≥ 20 | ||
| Tahlehelo ea ho khutla ha Optical
| ORL | dB | ≤ -27 | ||
| Tahlehelo ea ho kenya mahlo (*) | IL | dB | PHAHAMA: 5.5Mofuta: 4.5 | ||
| Matlo a motlakase (@25°C)
| Bophara ba motlakase ba 3 dB (ho tloha ho 2 GHz) | S21 | GHz | X1: 2 | X1: 4 |
| MIN: 18Mofuta: 20 | MIN: 36Mofuta: 40 | ||||
| Motlakase oa halofo ea maqhubu a Rf (@50 kHz)
| Vπ | V | X3：4 | ||
| PHAHAMA: 2.5Mofuta: 2.0 | |||||
| Matla a maqhubu a halofo a feto-fetohang a mocheso | Papπ | mW | ≤ 50 | ||
| Tahlehelo ea ho khutla ha Rf (2 GHz ho isa ho 40 GHz)
| S11 | dB | ≤ -10 | ||
| Boemo ba ho sebetsa
| Mocheso o sebetsang | TO | °C | -20~70 | |
* e ka fetoloang** Tekanyo e phahameng ea ho fela ha lintho (> 25 dB) e ka fetoloa.
Moeli oa tšenyo
Haeba sesebediswa se feta tekanyo e phahameng ka ho fetisisa ya tshenyo, se tla baka tshenyo e ke keng ya lokiswa sesebediswa, mme mofuta ona wa tshenyo ya sesebediswa ha o kwahelwe ke tshebeletso ya tlhokomelo.
| Akhang | Sym | Se ka khethoang | MIN | MAX | Yuniti |
| Matla a ho kenya a Rf | Sebe | - | 18 | dBm | Sebe |
| Motlakase oa ho chencha oa Rf | Vpp | -2.5 | +2.5 | V | Vpp |
| Motlakase oa RMS oa ho kenya Rf | Li-Vrms | - | 1.78 | V | Li-Vrms |
| Matla a ho kenya a Optical | Phini | - | 20 | dBm | Phini |
| Motlakase oa leeme o nang le thermotuned | Heater | - | 4.5 | V | Heater |
| Leeme la ho lokisa mocheso le chesang
| Sehatsetsi | - | 50 | mA | Sehatsetsi |
| Mocheso oa polokelo | TS | -40 | 85 | ℃ | TS |
| Mongobo o amanang (ha ho na mongobo) | RH | 5 | 90 | % | RH |
Sampole ea teko ea S21
FEIE1: S21
FEIE2: S11
Tlhahisoleseding ea odara
Modulator ea matla a matla a lithium e tšesaane ea 20 GHz/40 GHz
| e ka khethoang | Tlhaloso | e ka khethoang | |
| X1 | Bophara ba motlakase ba 3 dB | 2or4 | |
| X2 | Bolelele ba bolelele ba tshebetso | O or C | |
| X3 | Matla a ho kenya a RF a phahameng ka ho fetisisa | Sehlopha sa C5 or 6 | O-sehlopha4 |
