Rof Bias Point Controller automatic bias control module ea lithium niobate MZ modulator
Sebopeho
Ho na le mekhoa e mengata ea ts'ebetso ea leeme (Quad +↔Quad-, Min↔Max)
Puisano ea serial, tokiso e hlophisehileng ea othomathiki le lintlha tsa ho notlela tse notlelang
Li-beamers tsa likarolo tsa ka hare li tšehetsa mefuta e sa tšoaneng ea maqhubu
Sephutheloana sa module, phepelo ea motlakase ea adaptara
Kopo
Puisano ea fiber ea optic
Microwave photon
Tšebeliso ea khanya ea pulsed
Tshebetso
Setšoantšo sa 1. Sehlopha sa linaleli (se se nang molaoli)
Setšoantšo sa 2. Sehlopha sa linaleli sa QPSK (se nang le molaoli

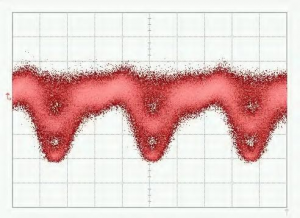

Setšoantšo sa 3. QPSK-Eye mohlala
Setšoantšo sa 5. 16-QAM Constellation pattern
Setšoantšo sa 4. QPSK Spectrum
Setšoantšo sa 6. 16-QAM Spectrum
Litlhaloso
| Argument | Min | E tloaelehileng | Max | Yuniti |
| Paramethara ea Optical | ||||
| Kenya matla a optical 1* | 0 | 13 | dBm | |
| Operation wavelength 2* | 780 | 1650 | nm | |
| Sehokelo sa fiber optical | FC/APC | |||
| Parameter ea motlakase | ||||
| Matla a leeme | -10 | 10 | V | |
| Phetoho ea ho timela ha 3* | 20 | 25 | 50 | dB |
| Sebaka se notletsoeng ka mokhoa | E ntle kapa e mpe | |||
| Mokhoa oa ho notlela | Quad+ (Quad-) kapaMin(Max) | |||
| Botebo ba ho feto-fetoha ha molumo (QUAD) | 1 | 2 | % | |
| Botebo ba ho feto-fetoha ha molumo (Nnull) | 0.1 | % | ||
| Leqhubu la sefofane (QUAD) | 1K | Hz | ||
| Maqhubu a sefofane (NULL) | 2K | Hz | ||
| Tloaelehileng parameter | ||||
| Litekanyo (bolelele× bophara× botenya) | 120×70×34 limilimithara | |||
| Mocheso oa ho sebetsa | 0-70℃ | |||
Hlokomela:
1 * e bua ka phallo ea matla a motlakase ho module ha tlhahiso ea modulator e le boholo. Bakeng sa taolo ea ntlha e tlase ea modulator e nang le tekanyo e phahameng ea ho fela, matla a ho kenya a lokela ho eketseha ka mokhoa o nepahetseng; Ka litlhoko tse khethehileng tsa ho kenya matla, o ka lokisa li-indicators tsa ka hare tsa coupler le detector, ka kopo, sheba thekiso ha o laela.
2 * Ha u beha taelo, ka kopo bolela bolelele ba maqhubu a sebetsang, bo hlokang ho ntlafatsoa ho ea ka bolelele ba ho sebetsa.
3 * switching extinction ratio e boetse e ipapisitse le boemo ba ho felloa ke nako ea modulator ka boeona.
Setšoantšo sa boholo (mm)
Ho odara litaba
* Haeba u na le litlhoko tse khethehileng, ka kopo ikopanye le basebetsi ba rona ba thekiso
| ROF | ABC | Mofuta oa modulator | XX | XX | XX |
| Automatic bias point control module | MZ---M-Zmoduthara | Wavelength e sebetsang: 15---1550nm 13---1310nm 10---1064nm 08---850nm 07---780nm | Mofuta oa fiber: S-- fiber ea optical mode e le 'ngoe P - polarization-ho boloka fiber | Khokahano ea fiber ea Optical: FA-FC/APC FP---FC/UPC |
Mosebelisi
| Sehlopha | Tshebetso | Tlhaloso |
| Seta bocha | Kenya jumper 'me u ntše ka mor'a motsotsoana o le mong | Seta selaoli bocha |
| Matla | Mohloli oa matla bakeng sa molaoli oa leeme | V- e kopanya electrode e mpe ea phepelo ea matla |
| V + e hokahanya electrode e ntle ea phepelo ea matla | ||
| Boema-kepe bo bohareng bo hokahana le electrode ea fatše | ||
| Polar1 | PLRI: Kenya kapa ntša jumper | ha ho jumper: Mokhoa oa Null; ka jumper: Peak mode |
| PLRQ: Kenya kapa ntša jumper | ha ho jumper: Mokhoa oa Null; ka jumper: Peak mode | |
| PLRP: Kenya kapa u hule jumper | ha ho jumper: Mokhoa oa Q +; ka jumper: Q-mokhoa | |
| LED | Kamehla ho | Ho sebetsa tlasa mmuso o tsitsitseng |
| Ho tima kapa ho tima ka metsotso e meng le e meng e 0.2 | Ts'ebetso ea data le ho batla sebaka sa taolo | |
| Ho tima kapa ho tima motsotso o mong le o mong oa 1 | Matla a ho kenya a fokola haholo | |
| Ho tima kapa ho tima metsotso e meng le e meng ea 3 | Matla a kentsoeng a matla a matla haholo | |
| PD2 | Kopana le photodiode | Boema-kepe ba PD bo hokahanya Cathode ea photodiode |
| Boema-kepe ba GND bo hokahanya Anode ea photodiode | ||
| Li-voltages tse fapaneng | In, Ip: Bias voltage for I arm | Ip: Lehlakore le letle; Ho: Lehlakore kapa mobu o fosahetseng |
| Qn, Qp: Bias voltage bakeng sa letsoho la Q | Qp: Lehlakore le letle; Qn: Lehlakore kapa mobu o fosahetseng | |
| Pn, Pp: Voltage ea Bias bakeng sa letsoho la P | Pp: Lehlakore le letle; Pn: Lehlakore kapa mobu o fosahetseng | |
| UART | Sebetsa molaoli ka UART | 3.3: 3.3V motlakase oa litšupiso |
| GND: Fatše | ||
| RX: Fumana molaoli | ||
| TX: Phetiso ea molaoli |
1 Polar e ipapisitse le lets'oao la RF la sistimi. Ha ho se na lets'oao la RF tsamaisong, polar e lokela ho ba ntle. Ha lets'oao la RF le na le amplitude e kholo ho feta boemo bo itseng, polar e tla fetoha ho tloha ho e ntle ho ea ho e mpe. Ka nako ena, Null point le Peak point li tla chenchana.Q+ point le Q-point li tla chenchana hape.Polar switch e thusa mosebelisi ho fetola polar.
ka kotloloho ntle le ho fetola lintlha tsa ts'ebetso.
2Ho tla khethoa khetho e le 'ngoe feela pakeng tsa ho sebelisa photodiode ea molaoli kapa ho sebelisa modulator photodiode. Ho khothalletsoa ho sebelisa photodiode ea taolo bakeng sa liteko tsa Lab ka mabaka a mabeli. Taba ea pele, photodiode ea molaoli e netefalitse litšoaneleho. Taba ea bobeli, ho bonolo ho fetola matla a khanya ea ho kenya. Haeba u sebelisa photodiode ea ka hare ea modulator, ka kopo etsa bonnete ba hore tlhahiso ea hona joale ea photodiode e lekana hantle le matla a ho kenya.
Rofea Optoelectronics e fana ka lethathamo la lihlahisoa tsa khoebo ea Electro-optic modulators, Phase modulator, Intensity modulator, Photodetectors, Laser light sources, DFB lasers, Optical amplifiers, EDFA, SLD laser, QPSK modulation, Pulse laser, Light detector, Balanced driver photodetector, Laser , Fiber optic amplifier, Optical power meter, Broadband laser, Laser ea tunable, Optical detector, Laser diode driver, Fiber amplifier. Re boetse re fana ka li-modulator tse ngata tse ikhethileng, joalo ka li-modulator tsa 1 * 4 array phase, Vpi e tlase haholo, le li-modulator tse phahameng haholo tsa ho timela, tse sebelisoang haholo liunivesithing le litsing.
Re tšepa hore lihlahisoa tsa rona li tla u thusa le lipatlisiso tsa hau.
