Modulator ea Rof Electro-optic 1550nm AM Series Intensity Modulator 40G
Tšobotsi
* Tahlehelo e tlase ea ho kenya
* Bandwidth e Phahameng
* Motlakase o tlase oa halofo ea maqhubu
* Khetho ea ho iketsetsa
Kopo
⚫ Litsamaiso tsa ROF
⚫ Kabo ea senotlolo sa Quantum
⚫ Litsamaiso tsa ho lemoha ka laser
⚫ Ho feto-fetoha ha lebanta la lehlakore
| RofLetoto la -AM | Rof-AM-07 | Rof-AM-08 | Rof-AM-10 | Rof-AM-13 | Rof-AM-15 | |||
| Bolelele ba bolelele ba tshebetso | 780nm | 850nm | 1064nm | 1310nm | 1550nm | |||
| Bophara ba mothapo | 10GHz | 10GHz | 10/20GHz | 2.5GHz | 50GHz | 10GHz | 20GHz | 40GHz |
| Tahlehelo ea ho Kena | ＜5dB | ＜5dB | ＜5dB | ＜5dB | ＜4dB | |||
| Karolelano ea ho fela @DC | ＞20dB | ＞20dB | ＞20dB | ＞20dB | ＞20dB | |||
| VΠ @RF (1KHz) | ＜3V | ＜3V | 4V | <3.5V | ＜6V | <5V | ||
| VΠ @Leeme | ＜3.5V | ＜3.5V | ＜5V | <5V | <8V | <7V | ||
Tlhahisoleseding ea ho odara
| Rof | AM | XX | XXG | XX | XX | XX |
| Mofuta: AM---Modulator ea Matla | Bolelele ba maqhubu: 07---780nm 10--1060nm 13---1310nm 15---1550nm | Mothapo oa khomphutha: 10GHz 20GHz 40GHz 50GHz
| Mohlokomeli oa PD: PD---Ka PD | Mofuta oa Faeba o Tsoang: PP--PM/PM
| Sehokelo sa Optical: FA---FC/APC FP---FC/PC SP---Ho iketsetsa |
R-AM-15-40G
Modulator ea Matla a Wavalest ea 1550nm 40GHz
| Paramethara | Letšoao | Bonyane | Mofuta | Boholo | Yuniti | ||||
| Liparamente tsa mahlo | |||||||||
| Bolelele ba bolelele ba tshebetso | l | 1530 | 1550 | 1565 | nm | ||||
| Tahlehelo ea ho kenya | IL | 4 | 5 | dB | |||||
| Tahlehelo ea ho khutla ha Optical | ORL | -45 | dB | ||||||
| Karolelano ea ho fela ha switch @DC | ER@DC | 20 | 23 | 45 | dB | ||||
| Karolelano ea ho fela ha matla | DER | 13 | dB | ||||||
| Faeba ea mahlo | Kenokou | Panda PM Fujikura SM | |||||||
| koung ea tlhahiso | Panda PM Fujikura SM | ||||||||
| Sebopeho sa faeba ea Optical | FC/PC, FC/APC Kapa mosebelisi ho hlalosa | ||||||||
| Mekhahlelo ea motlakase | |||||||||
| Bokgoni ba ho sebetsa()-3dB） | S21 | 28 | 30 | GHz | |||||
| Vpi ea motlakase oa halofo ea maqhubu | RF | @50KHz |
| 4.5 | 5 | V | |||
| Leeme | @Leeme |
| 6 | 7 | V | ||||
| Tahlehelo ea ho khutla ha motlakase | S11 | -12 | -10 | dB | |||||
| Impedance ea ho kenya | RF | ZRF | 50 | W | |||||
| Leeme | ZLEEME | 1M | W | ||||||
| Sebopeho sa motlakase | V(f) | ||||||||
Maemo a Moeli
| Paramethara | Letšoao | Yuniti | Bonyane | Mofuta | Boholo |
| Matla a ho kenya a optical | Pka, Max | dBm | 20 | ||
| Matla a ho kenya a RF | dBm | 28 | |||
| motlakase oa leeme | Li-Vbia | V | -15 | 15 | |
| Mocheso o sebetsang | Holimo | ℃ | -10 | 60 | |
| Mocheso oa polokelo | Tst | ℃ | -40 | 85 | |
| Mongobo | RH | % | 5 | 90 |
Sekhutlo sa S21
&Sekhutlo sa S11

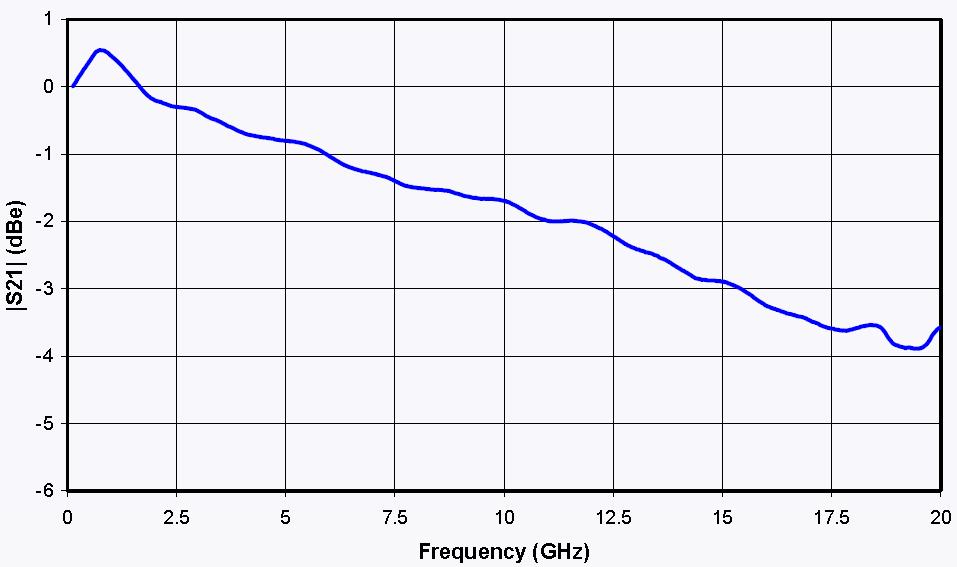

Li-curve tsa S21 le s11
Setšoantšo sa Mekaniki
| KHETHO | Letšoao | Hlokomela |
| Ka hare | Kou ea ho kenya ea Optical | Faeba ea PM (125μm/250μm) |
| Kantle | Optical khumo koung | Khetho ea PM le SMF |
| RF | Kou ea ho kenya ea RF | SMA(f) |
| Leeme | Kou ea taolo ea leeme | 1,2 Leeme, 34-N/C |
Rofea Optoelectronics e fana ka letoto la dihlahiswa tsa di-modulator tsa Electro-optic tsa kgwebo, Di-modulator tsa Phase, Modulator ya Matla, Di-Photodetector, Mehlodi ya mabone a Laser, Di-laser tsa DFB, Di-amplifiers tsa Optical, EDFA, SLD laser, QPSK modulation, Pulse laser, Light detector, Balanced photodetector, Mokhanni wa Laser, Fiber optic amplifier, Optical power meter, Broadband laser, Tunable laser, Optical detector, Laser diode driver, Fiber amplifier. Re boetse re fana ka di-modulator tse ngata tse ikgethang bakeng sa ho iketsetsa, tse kang di-modulator tsa phase ya 1*4 array, Vpi e tlase haholo, le di-modulator tsa ultra-high extinction ratio, tse sebediswang haholo diyunivesithing le ditheong.
Ke tšepa hore lihlahisoa tsa rona li tla u thusa le lipatlisisong tsa hau.
