Mini 0.5~1200MHz Analog Wideband Transceiver module Analog Broadband Optical Receiver
Sehlahisoa tšobotsi
Karabelo ea Bandwidth 0.5MHz ho isa ho 1200MHz
Mokotla o thata oa tšepe
SFDR e phahameng
karabo e bataletseng
1.3 le/kapa 1.5μm e nang le FP/DFB e ka thoko
Kopo
⚫ WiMAX / 4G LTE
⚫ 5G puisano
⚫ Kabo ea maqhubu a seea-le-moea ka sekepe
⚫ seteishene sa lefatše sa satellite
mekhahlelo
| paramethara | seka | Bonyane ba boleng | Boleng bo tloaelehileng | Boleng bo phahameng | unit |
| Matla a phepelo | VCC | 9 | 12 | 15 | Li-volts |
| Phepelo ea hajoale (kakaretso ea hajoale e amohetsoeng le e amohetsoeng) | ICC | 100 | mA | ||
| Matla a hlahisoang ke laser | 2 | 4 | mW | ||
| Leqhubu la ho sebetsa la transmitter | 1310/1550 | nm | |||
| Wavelength e sebetsang ea moamoheli | 1310/1550 | nm | |||
| Khaello ea maqhubu a holimo | HFC | 1200 | MHz | ||
| Khatiso e tlase ea maqhubu | LFC | 0.5 | MHz | ||
| Karabelo ea khafetsa(0.5-1200 MHz) | ± 1.5 | ± 2 | dB | ||
| Kenya matla a rf | -5 | dBm | |||
| kenya letsoho/Boiphetetso ba sephetho | Z | 50 | Ohms | ||
| Karolelano ea maqhubu a emengVSWR | 1.5 | dB | |||
| Phaello ea lihokelo tsa Rf | -5 | 0 | dB | ||
| Boema-kepe ba Rf | SMA | ||||
| Optical fiber port | Fiber ea mofuta o le mong900umKhase e sireletsangFC/APC | ||||
Moeli oa liparamente
| paramethara | seka | Bonyane ba boleng | Boleng bo phahameng | unit |
| Mocheso oa polokelo | TS | -40 | +85 | ℃ |
| Mocheso oa ho sebetsa | TO | -25 | +65 | ℃ |
| DC Supply voltage | VDP | +9 | +15 | V |
| Boholo ba RF input(Tx) | +10 | dBm | ||
| Boholo bo kenang ka mahlo (Rx) | 4 | mW |

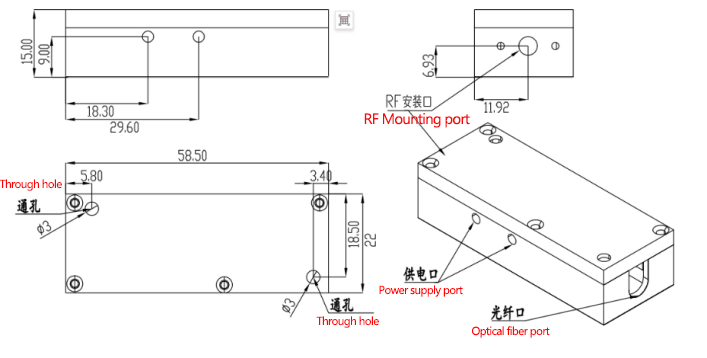

Mounting dimension
(a) Mojule oa ho fetisa
(b) Mojule oa ho amohela
oda tlhahisoleseding
| ROF-MINI | XX | XX | X | X |
| Mini analog broadband optical transceiver module | Wavelength e sebetsang: 13- 1310nm 15- 1550nm | Modulation bandwidth: 01---0.5 ~ 1200MHz 02---50-3000MHz 03---0.6~6GHz | qoelisoa:M---mojule | Optical fiber connrctor:FA---FC/APCSP---Mosebelisi o hlalositsoe |
* ka kopo ikopanye le morekisi oa rona haeba u na le litlhoko tse khethehileng.
